Power Supplies and Electronic Loads

Power Supplies and Electronic Loads

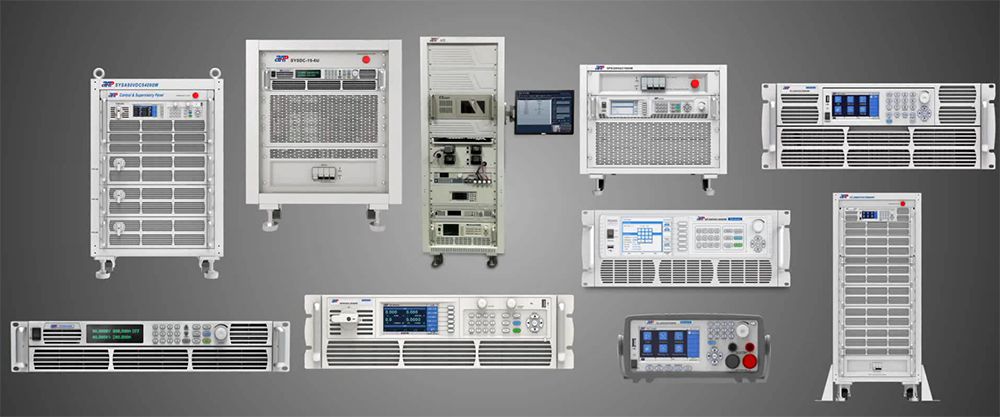

APM Technologies offers programmable DC/AC power supplies and DC electronic loads with convenient touch-screen control and graphic user interface, complete protections and multi-unit connection. 2 series of DC power supply are offered, SP-1U/2U and SP-3U4U, both feature good performance and various data interfaces, high power can be achieved via multi-unit parallel connection. SP-1U/2U offers LIST waveform edit; SP-3U4U offers a wide range and CC&CV priories. 2 series of AC power source, the single phase SP-300 series with power line disturbance simulation, harmonic simulation and three phase SPST series. The EL series DC electronic load offers 4 basic working modes and 3 complex modes, fitting various tests.
DC Power Supply

We offer various types of programmable DC power supplies, power capacity ranging from 600W to 36kW, up to 576kW by paralleling, voltage up to 2250V. Various interfaces are equipped, including LAN, USB, RS-232, RS-485 and GPIB; remote control and update are supported.

    1. SP-1U/2U Series High Performance DC Power Supply
    2. SP-1U/2U Series High Performance DC Power Supply APM high performance DC power supply (SP-1U/2U Series) is suitable for power electrical testing solutions, featuring power range from 600W to 40kW, and up to 800V/200A voltage/current output, maximum power by multi-unit parallel connection is up to 40kW.
      • Voltage: 20V~800V
      • Power: 600W~40kW
      • Size: 1U, 2U, 13U, 19U, 27U
      • Interface: LAN, USB, RS-232 and RS-485, optional GPIB
      More
    1. SP-3U/6U Series High Power Programmable DC Power Supply
    2. SP-3U/6U Series High Power Programmable DC Power Supply SP-3U/6U series high power programmable DC power supply is suitable for providing high-power and stable DC output for labs and automatic testing systems.
      • Voltage: 80V~2250V
      • Power: 6000W~180kW
      • Size: 3U, 6U, 18U, 24U, 36U, 42U
      • Interface: LAN, USB, RS-232 and RS-485, optional GPIB
      More
AC Power Source

We offer various programmable AC power supplies, power ranging from 600W to 20kW. This series is single/three phase AC power source with high power density, applying high-speed DSP+CPLD controlling, high-frequency PMW and active PFC, able for stable AC/DC output; frequency ranging in 15-1200Hz; built-in power meter, supporting master/slave paralleling connection; various options of connection interfaces, including LAN, USB, RS-232, RS-485 and USB.

    1. SP-300 Series Single Phase Programmable AC Power Source
    2. SP-300 Series Single Phase Programmable AC Power Source SP-300 series single phase programmable AC power source is with single output, power ranging from 600W to 5kW for a single unit and up to 20kW via parallel connecting.
      • Voltage: 150V/300V/600V
      • Power: 600W-20kW
      • Size: 2U, 3U, 4U, 9U, 17U, 21U
      • Interface: LAN, USB, RS-232, RS-485, GPIB
      More
    1. SPST Series Three Phase Programmable AC Power Source
    2. SPST Series Three Phase Programmable AC Power Source SPST series three phase programmable AC power source features high power density and single/three phase output, power ranging from 1800W to 15kW.
      • Voltage: 150V/300V/600V
      • Power: 1800W-15kW
      • Size: 9U, 17U
      • Interface: LAN, USB, RS-232, RS-485, GPIB
      More
DC Electronic Loads

APM DC electronic loads feature a wide power range from 600W to 27.9kW, maximum multi-unit parallel connected power up to 558kW; fast loop response and current slew. Various basic and complex modes are supported; various functions are supported including dynamic load, OCP/OPP testing, auto mode, battery discharge testing, etc. The DC electronic loads also feature compact size and high power density, which is room-saving; Interfaces in standard configuration include RS232/RS485/USB, optional interfaces include LAN&GPIB.

    1. EL Series Programmable DC Electronic Load
    2. EL Series Programmable DC Electronic Load EL series programmable DC electronic loads feature wide current and voltage range; voltage ranges 200V/600V/1200V (for different models), single-unit power up to 27.9kW. Multi-unit connection is supported, via master/slave parallel connection, power can be up to 558kW.
      • Voltage: 200V/600V/1200V
      • Power: 600W-73.5kW
      • Size: 2U, 3U, 4U, 7U, 10U, 13U, 30U, 36U, 42U
      • Interface: LAN, USB, RS-232 and RS-485, optional GPIB and CAN
      More
APM Technologies is a professional power electric manufacturer and testing solution provider, offering programmable DC/AC power supplies and DC electronic loads with high performance and various functions granting reliability and convenience in tests. Our products can be applied for various industrial applications, such as electric vehicle tests, LED light tests, battery tests, etc. We maintain great efforts on R&D and production. With a professional and innovative R&D team as well as cooperation with experts worldwide, we keep our technologies cutting-edge; with advanced equipment and scientific management, we keep our products top-qualified. We spend efforts in services as much as that in products, feel free to contact us if you are in need, APM Technologies is your reliable choice.
