SP-1U/2U Series High Performance DC Power Supply

SP-1U/2U Series High Performance DC Power Supply

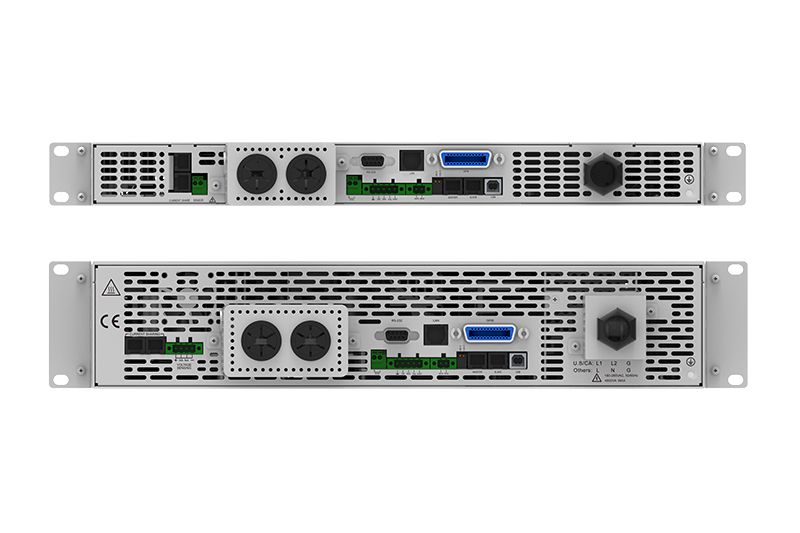

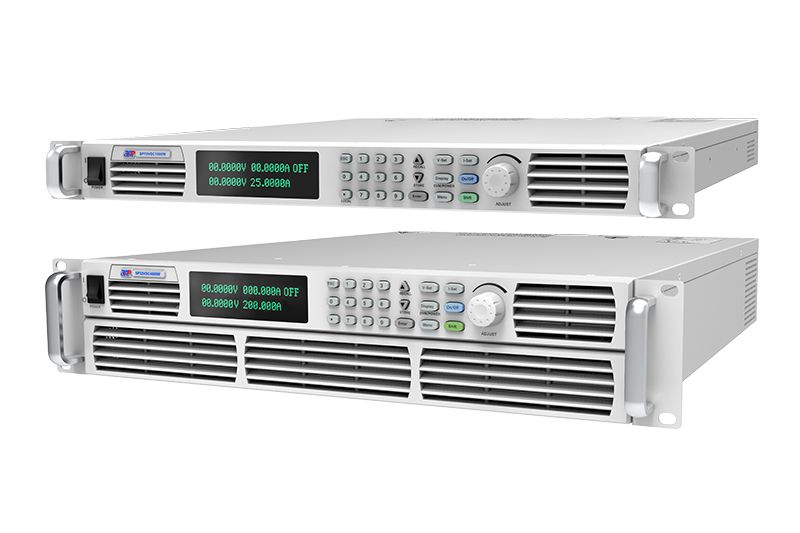

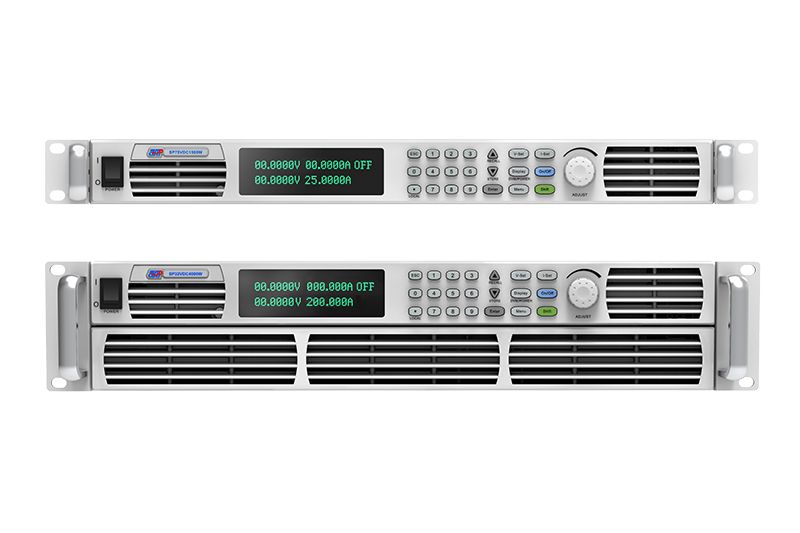

  • SP-1U/2U Series High Performance DC Power Supply
  • SP-1U/2U Series High Performance DC Power Supply
  • SP-1U/2U Series High Performance DC Power Supply
  • SP-1U/2U Series High Performance DC Power Supply
  • SP-1U/2U Series High Performance DC Power Supply
    • Voltage: 20V~800V
    • Power: 600W~40kW

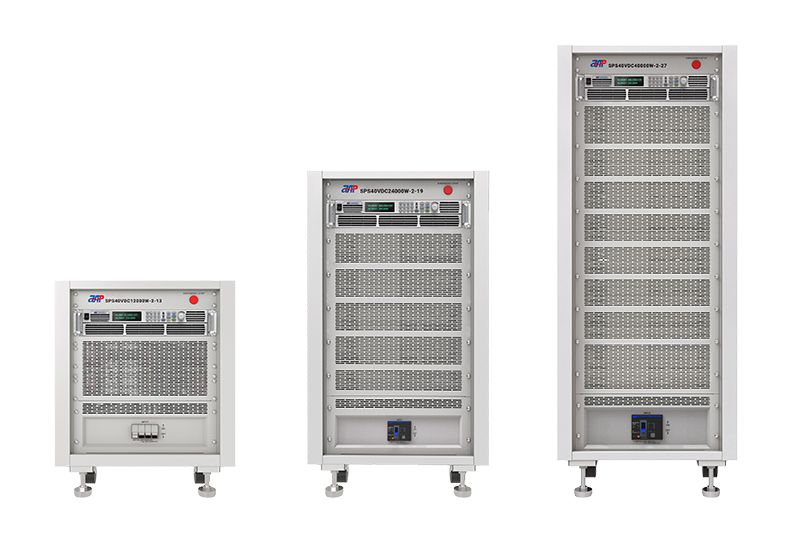

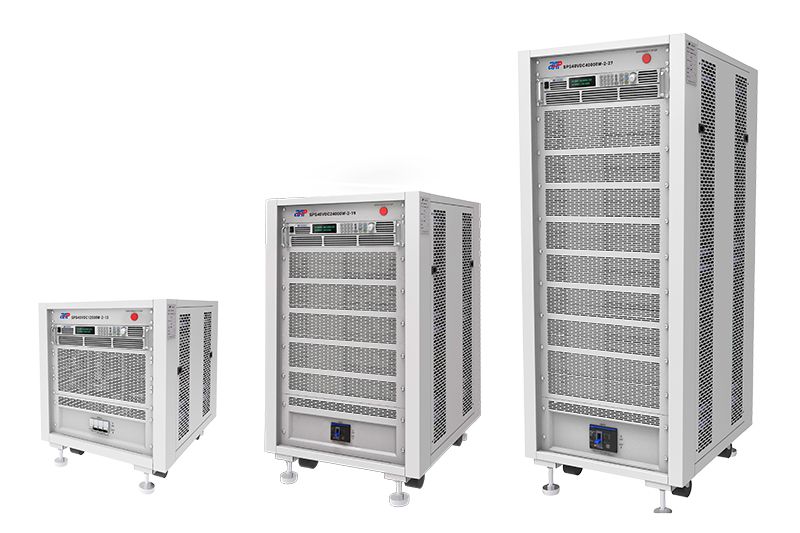

    • Size: 1U, 2U, 13U, 19U, 27U
    • Interface: LAN, USB, RS-232 and RS-485, optional GPIB
    • Specifications
    • Application Case
    • Related Download
    • Product Video
    Request a quote
    Description

    APM high performance DC power supply (SP-1U/2U Series) is suitable for power electrical testing solutions, featuring power range from 600W to 40kW, and up to 800V/200A voltage/current output, maximum power by multi-unit parallel connection is up to 40kW. The power supply is programmable with auto-range function, which is suitable for various testing requirements.

    Advantages
    • Low voltage ripple, low noise.
    • High precision, high resolution.
    • Free switching between CV and CC modes.
    • Support for LIST/SEQUENCE file editing.
    • OVP/OCP/OPP/OTP/SCP functions. (over voltage/over current/over power/over temperature/short circuit protection)
    • Remote compensation function.
    • External analog control interfaces.
    • Support for USB/LAN/RS485/RS232/GPIB communication protocols.
    • Support for master/slave series/parallel connection for up to 10 units.
    Applications
    • Industrial manufacturing.
    • Automobile parts and battery tests.
    • Military and aerospace electronics tests.
    • Laboratory tests.
    • Motors and generators.
    Functions

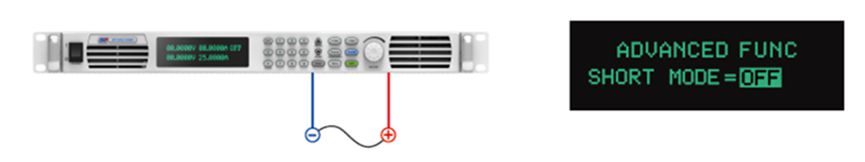

    • Short Mode
      Suitable for current carrying capacity test on cables/fuses. When short mode is on, short circuit protection is turned off, and the output is kept with very low voltage, and rated current.
      SP-1U/2U Series High Performance DC Power Supply

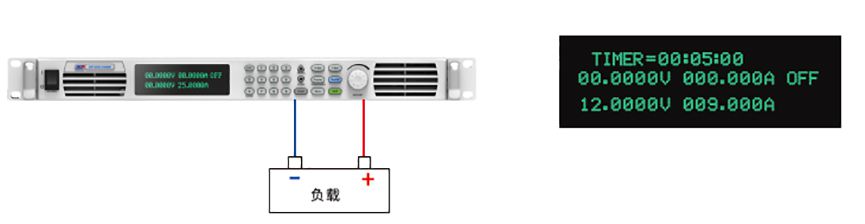

    • Timer Control
      Suitable for unattended situations. Use this function, set output time, timing starts when output starts, output is turned off automatically when timing ends. Protection functions are equipped to ensure safety of timer control application.
      SP-1U/2U Series High Performance DC Power Supply
    • Quick Recall
      Via Quick Recall function, the stored parameters can be called by pressing numeric keys on the front panel, which is convenient. Store set of parameters in the power supply memory, call it by entering Quick Recall function, and press the corresponding numeric key [1]~[9].

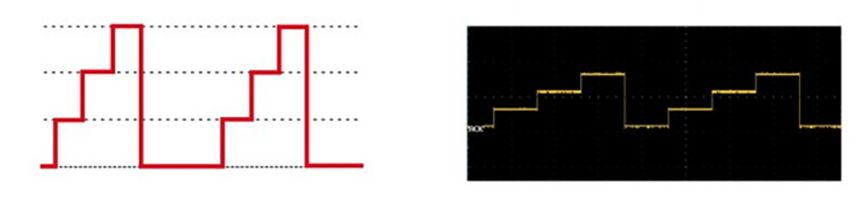

    • LIST Waveform Editing
      3 types of LIST file editing formats are supported: Pulse, Slope and SEQUENCE; minimum time setting resolution is 1ms.
    • Impulse Editing
      Voltage change over time and its duration can be set in impulse editing, choose a waveform output mode according to certain need, including: LOOP, CONT and STEP.
      SP-1U/2U Series High Performance DC Power Supply

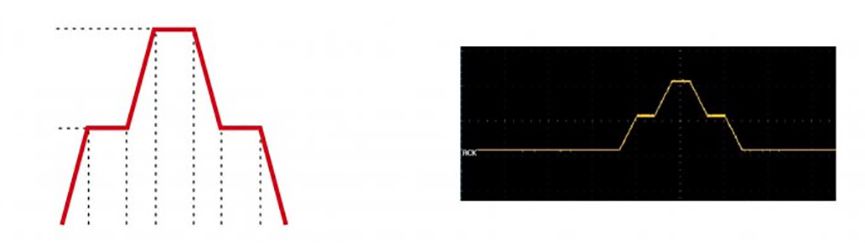

    • Slope Editing
      Slope of voltage output can be set for slow voltage increase/decrease in slope editing, choose a waveform output mode according to certain need, including: LOOP, CONT and STEP.
      SP-1U/2U Series High Performance DC Power Supply

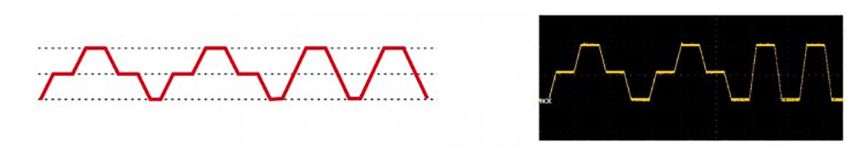

    • SEQUENCE Waveform Editing
      SEQUENCE Waveform Editing is an upgraded version of LIST File Editing, of which each step is a complete LIST file. By SEQUENCE editing, multiple LIST files can be combined to output, times of repetitions of each LIST file and executions of the SEQUENCE file can be set as well.
      SP-1U/2U Series High Performance DC Power Supply
    • Remote Compensation
      Via Remote Compensation function, voltage drop of load the load line can be compensated, to promote testing accuracy. It is recommended in practice, to connect Remote Compensation cable to the output, even if the voltage drop is negligible. When using Remote Compensation, please disconnect S+, S- from power supply output, and connect them to the DUT. Maximum compensation voltage is 5V, output power after compensation should be less than 1.05% of the rated power.

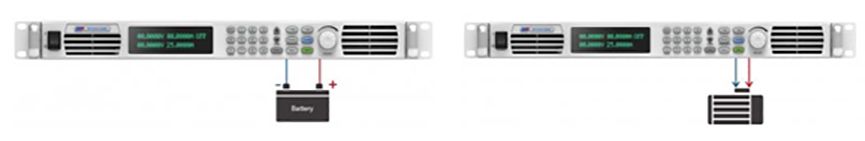

    • Anti Reverse Irrigation & Power Sink
      Anti reverse irrigation protection is equipped to prevent damage caused by reverse irrigation current from the DUT, via a cutting-off mechanism. Power sink function is equipped in standard configuration, carried out by a short circuit copper sheet. When it is needed to have the power supply absorb spikes generated by DUT to ensure operation safety, the short circuit copper sheet can be connected, and the spike energy will be absorbed by power supply's built-in output capacitor and other circuits.
      SP-1U/2U Series High Performance DC Power Supply
    Specifications
    Model Voltage Current Power Voltage Ripple Current Ripple Response（Voltage Increase） Response（Voltage Drop） Size
    SP20VDC600W 20V 60A 600W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤150ms(No load),≤20ms(Full load) 1U
    SP20VDC1000W 20V 60A 1000W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤150ms(No load),≤15ms(Full load) 1U
    SP20VDC1200W 20V 60A 1200W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤150ms(No load),≤12ms(Full load) 1U
    SP32VDC600W 32V 50A 600W 40mVp-p/6mVrms 20mA (TYP Value) ≤12ms(No load),≤12ms(Full load) ≤150ms(No load),≤20ms(Full load) 1U
    SP32VDC1000W 32V 50A 1000W 40mVp-p/6mVrms 20mA (TYP Value) ≤12ms(No load),≤12ms(Full load) ≤150ms(No load),≤15ms(Full load) 1U
    SP32VDC1200W 32V 50A 1200W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤150ms(No load),≤12ms(Full load) 1U
    SP32VDC1600W 32V 50A 1600W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤150ms(No load),≤10ms(Full load) 1U
    SPS32VDC1000W 32V 200A 1000W 60mVp-p/10mVrms 200mA (TYP Value) ≤20ms(No load),≤40ms(Full load) ≤500ms(No load),≤45ms(Full load) 2U
    SP32VDC2000W 32V 200A 2000W 60mVp-p/10mVrms 200mA (TYP Value) ≤20ms(No load),≤30ms(Full load) ≤500ms(No load),≤30ms(Full load) 2U
    SP32VDC3000W 32V 200A 3000W 60mVp-p/10mVrms 200mA (TYP Value) ≤20ms(No load),≤20ms(Full load) ≤500ms(No load),≤25ms(Full load) 2U
    SP32VDC4000W 32V 200A 4000W 60mVp-p/10mVrms 200mA (TYP Value) ≤20ms(No load),≤20ms(Full load) ≤500ms(No load),≤20ms(Full load) 2U
    SP40VDC600W 40V 40A 600W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤150ms(No load),≤20ms(Full load) 1U
    SP40VDC1000W 40V 40A 1000W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤150ms(No load),≤15ms(Full load) 1U
    SP40VDC1200W 40V 40A 1200W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤150ms(No load),≤12ms(Full load) 1U
    SP40VDC1600W 40V 40A 1600W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤150ms(No load),≤10ms(Full load) 1U
    SPS40VDC1000W 40V 120A 1000W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤350ms(No load),≤10ms(Full load) 2U
    SP40VDC2000W 40V 120A 2000W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤350ms(No load),≤10ms(Full load) 2U
    SP40VDC3000W 40V 120A 3000W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤350ms(No load),≤10ms(Full load) 2U
    SP40VDC4000W 40V 120A 4000W 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤350ms(No load),≤10ms(Full load) 2U
    SP75VDC600W 75V 25A 600W 40mVp-p/6mVrms 10mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤160ms(No load),≤20ms(Full load) 1U
    SP75VDC1000W 75V 25A 1000W 40mVp-p/6mVrms 10mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤160ms(No load),≤15ms(Full load) 1U
    SP75VDC1200W 75V 25A 1200W 40mVp-p/6mVrms 10mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤160ms(No load),≤12ms(Full load) 1U
    SP75VDC1500W 75V 25A 1500W 40mVp-p/6mVrms 10mA (TYP Value) ≤10ms(No load),≤10ms(Full load) ≤160ms(No load),≤10ms(Full load) 1U
    SP75VDC4000W 75V 60A 4000W 40mVp-p/8mVrms 10mA (TYP Value) ≤15ms(No load),≤15ms(Full load) ≤450ms(No load),≤20ms(Full load) 2U
    SPS80VDC1000W 80V 60A 1000W 40mVp-p/6mVrms 10mA (TYP Value) ≤15ms(No load),≤15ms(Full load) ≤450ms(No load),≤30ms(Full load) 2U
    SP80VDC2000W 80V 60A 2000W 40mVp-p/6mVrms 10mA (TYP Value) ≤15ms(No load),≤15ms(Full load) ≤450ms(No load),≤30ms(Full load) 2U
    SP80VDC3000W 80V 60A 3000W 40mVp-p/6mVrms 10mA (TYP Value) ≤15ms(No load),≤15ms(Full load) ≤450ms(No load),≤30ms(Full load) 2U
    SPS120VDC1000W 120V 40A 1000W 80mVp-p/15mVrms 10mA (TYP Value) ≤20ms(No load),≤20ms(Full load) ≤350ms(No load),≤21ms(Full load) 2U
    SP120VDC2000W 120V 40A 2000W 80mVp-p/15mVrms 10mA (TYP Value) ≤20ms(No load),≤20ms(Full load) ≤350ms(No load),≤21ms(Full load) 2U
    SP120VDC3000W 120V 40A 3000W 80mVp-p/15mVrms 10mA (TYP Value) ≤20ms(No load),≤20ms(Full load) ≤350ms(No load),≤21ms(Full load) 2U
    SP120VDC4000W 120V 40A 4000W 80mVp-p/15mVrms 10mA (TYP Value) ≤20ms(No load),≤20ms(Full load) ≤350ms(No load),≤21ms(Full load) 2U
    SP150VDC600W 150V 10A 600W 120mVp-p/40mVrms 10mA (TYP Value) ≤25ms(No load),≤25ms(Full load) ≤400ms(No load),≤32ms(Full load) 1U
    SP150VDC1000W 150V 10A 1000W 120mVp-p/40mVrms 10mA (TYP Value) ≤25ms(No load),≤25ms(Full load) ≤400ms(No load),≤32ms(Full load) 1U
    SP150VDC1200W 150V 10A 1200W 120mVp-p/40mVrms 10mA (TYP Value) ≤25ms(No load),≤25ms(Full load) ≤400ms(No load),≤32ms(Full load) 1U
    SP150VDC1500W 150V 10A 1500W 120mVp-p/40mVrms 10mA (TYP Value) ≤25ms(No load),≤25ms(Full load) ≤400ms(No load),≤32ms(Full load) 1U
    SPS150VDC1000W 150V 30A 1000W 80mVp-p/15mVrms 10mA (TYP Value) ≤25ms(No load),≤25ms(Full load) ≤500ms(No load),≤25ms(Full load) 2U
    SP150VDC2000W 150V 30A 2000W 80mVp-p/15mVrms 10mA (TYP Value) ≤25ms(No load),≤25ms(Full load) ≤500ms(No load),≤25ms(Full load) 2U
    SP150VDC3000W 150V 30A 3000W 80mVp-p/15mVrms 10mA (TYP Value) ≤25ms(No load),≤25ms(Full load) ≤500ms(No load),≤25ms(Full load) 2U
    SP150VDC4000W 150V 30A 4000W 80mVp-p/15mVrms 10mA (TYP Value) ≤25ms(No load),≤25ms(Full load) ≤500ms(No load),≤25ms(Full load) 2U
    SP200VDC600W 200V 8A 600W 120mVp-p/40mVrms 10mA (TYP Value) ≤30ms(No load),≤30ms(Full load) ≤600ms(No load),≤50ms(Full load) 1U
    SP200VDC1000W 200V 8A 1000W 120mVp-p/40mVrms 10mA (TYP Value) ≤30ms(No load),≤30ms(Full load) ≤600ms(No load),≤40ms(Full load) 1U
    SP200VDC1200W 200V 8A 1200W 120mVp-p/40mVrms 10mA (TYP Value) ≤30ms(No load),≤30ms(Full load) ≤600ms(No load),≤36ms(Full load) 1U
    SP200VDC1500W 200V 8A 1500W 120mVp-p/40mVrms 10mA (TYP Value) ≤30ms(No load),≤30ms(Full load) ≤600ms(No load),≤30ms(Full load) 1U
    SPS200VDC1000W 200V 24A 1000W 150mVp-p/30mVrms 20mA (TYP Value) 30ms(No load),≤30ms(Full load) ≤500ms(No load),≤20ms(Full load) 2U
    SP200VDC2000W 200V 24A 2000W 150mVp-p/30mVrms 20mA (TYP Value) ≤30ms(No load),≤30ms(Full load) ≤500ms(No load),≤20ms(Full load) 2U
    SP200VDC3000W 200V 24A 3000W 150mVp-p/30mVrms 20mA (TYP Value) ≤30ms(No load),≤30ms(Full load) ≤500ms(No load),≤20ms(Full load) 2U
    SP200VDC4000W 200V 24A 4000W 150mVp-p/30mVrms 20mA (TYP Value) ≤30ms(No load),≤30ms(Full load) ≤500ms(No load),≤20ms(Full load) 2U
    SPS600VDC1000W 600V 10A 1000W 350mVp-p/40mVrms 10mA (TYP Value) ≤60ms(No load),≤60ms(Full load) ≤800ms(No load),≤110ms(Full load) 2U
    SP600VDC2000W 600V 10A 2000W 350mVp-p/40mVrms 10mA (TYP Value) ≤60ms(No load),≤60ms(Full load) ≤800ms(No load),≤90ms(Full load) 2U
    SP600VDC3000W 600V 10A 3000W 350mVp-p/40mVrms 10mA (TYP Value) ≤60ms(No load),≤60ms(Full load) ≤800ms(No load),≤75ms(Full load) 2U
    SP600VDC4000W 600V 10A 4000W 350mVp-p/40mVrms 10mA (TYP Value) ≤60ms(No load),≤60ms(Full load) ≤800ms(No load),≤60ms(Full load) 2U
    SPS800VDC1000W 800V 7.5A 1000W 800mVp-p/200mVrms 10mA (TYP Value) ≤60ms(No load),≤60ms(Full load) ≤800ms(No load),≤60ms(Full load) 2U
    SP800VDC2000W 800V 7.5A 2000W 800mVp-p/200mVrms 10mA (TYP Value) ≤60ms(No load),≤60ms(Full load) ≤800ms(No load),≤60ms(Full load) 2U
    SP800VDC3000W 800V 7.5A 3000W 800mVp-p/200mVrms 10mA (TYP Value) ≤60ms(No load),≤60ms(Full load) ≤800ms(No load),≤60ms(Full load) 2U
    SP800VDC4000W 800V 7.5A 4000W 800mVp-p/200mVrms 10mA (TYP Value) ≤60ms(No load),≤60ms(Full load) ≤800ms(No load),≤60ms(Full load) 2U
    Model Voltage Current Power Voltage Ripple Current Ripple Size
    SPS32VDC12000W-2-13 32V 600A 12kW 120mVp-p/20mVrms 600mA(Full Range),300mA(TYP Value) 13U
    SPS32VDC24000W-2-19 32V 1200A 24kW 120mVp-p/20mVrms 1200mA(Full Range),600mA(TYP Value) 19U
    SPS32VDC40000W-2-27 32V 2000A 40kW 120mVp-p/20mVrms 2000mA(Full Range),1000mA(TYP Value) 27U
    SPS40VDC12000W-2-13 40V 360A 12kW 80mVp-p/12mVrms 225mA(Full Range),30mA(TYP Value) 13U
    SPS40VDC24000W-2-19 40V 720A 24kW 80mVp-p/12mVrms 450mA(Full Range),60mA(TYP Value) 19U
    SPS40VDC40000W-2-27 40V 1200A 40kW 80mVp-p/12mVrms 750mA(Full Range),100mA(TYP Value) 27U
    SPS75VDC12000W-2-13 75V 180A 12kW 80mVp-p/16mVrms 90mA(Full Range),15mA(TYP Value) 13U
    SPS75VDC24000W-2-19 75V 360A 24kW 80mVp-p/16mVrms 180mA(Full Range),30mA(TYP Value) 19U
    SPS75VDC40000W-2-27 75V 600A 40kW 80mVp-p/16mVrms 300mA(Full Range),50mA(TYP Value) 27U
    SPS80VDC9000W-2-13 80V 180A 9kW 120mVp-p/18mVrms 75mA(Full Range),15mA(TYP Value) 13U
    SPS80VDC18000W-2-19 80V 360A 18kW 240mVp-p/36mVrms 150mA(Full Range),30mA(TYP Value) 19U
    SPS80VDC30000W-2-27 80V 600A 30kW 400mVp-p/60mVrms 250mA(Full Range),50mA(TYP Value) 27U
    SPS96VDC12000W-2-13 96V 200A 12kW 90mVp-p/15mVrms 800mA(Full Range),400mA(TYP Value) 13U
    SPS120VDC12000W-2-13 120V 120A 12kW 160mVp-p/30mVrms 90mA(Full Range),15mA(TYP Value) 13U
    SPS120VDC24000W-2-19 120V 240A 24kW 160mVp-p/30mVrms 180mA(Full Range),30mA(TYP Value) 19U
    SPS120VDC40000W-2-27 120V 400A 40kW 160mVp-p/30mVrms 300mA(Full Range),50mA(TYP Value) 27U
    SPS150VDC12000W-2-13 150V 90A 12kW 160mVp-p/30mVrms 90mA(Full Range),15mA(TYP Value) 13U
    SPS150VDC24000W-2-19 150V 180A 24kW 160mVp-p/30mVrms 180mA(Full Range),30mA(TYP Value) 19U
    SPS150VDC40000W-2-27 150V 300A 40kW 160mVp-p/30mVrms 300mA(Full Range),50mA(TYP Value) 27U
    SPS192VDC24000W-2-19 192V 200A 24kW 180mVp-p/30mVrms 800mA(Full Range),400mA(TYP Value) 19U
    SPS200VDC12000W-2-13 200V 72A 12kW 300mVp-p/60mVrms 75mA(Full Range),30mA(TYP Value) 13U
    SPS200VDC24000W-2-19 200V 144A 24kW 300mVp-p/60mVrms 150mA(Full Range),60mA(TYP Value) 19U
    SPS200VDC40000W-2-27 200V 240A 40kW 300mVp-p/60mVrms 250mA(Full Range),100mA(TYP Value) 27U
    SPS225VDC12000W-2-13 225V 60A 12kW 60mVp-p/12mVrms 120mA(Full Range),20mA(TYP Value) 13U
    SPS240VDC9000W-2-13 240V 60A 9kW 60mVp-p/9mVrms 150mA(Full Range),30mA(TYP Value) 13U
    SPS240VDC24000W-2-19 240V 120A 24kW 120mVp-p/18mVrms 300mA(Full Range),40mA(TYP Value) 19U
    SPS320VDC40000W-2-27 320V 200A 40kW 300mVp-p/50mVrms 800mA(Full Range),400mA(TYP Value) 27U
    SPS360VDC12000W-2-13 360V 40A 12kW 120mVp-p/22.5mVrms 120mA(Full Range),20mA(TYP Value) 13U
    SPS400VDC40000W-2-27 400V 120A 40kW 200mVp-p/30mVrms 300mA(Full Range),40mA(TYP Value) 27U
    SPS450VDC12000W-2-13 450V 30A 12kW 120mVp-p/22.5mVrms 120mA(Full Range),20mA(TYP Value) 13U
    SPS450VDC24000W-2-19 450V 60A 24kW 120mVp-p/24mVrms 120mA(Full Range),20mA(TYP Value) 19U
    SPS480VDC18000W-2-19 480V 60A 18kW 120mVp-p/18mVrms 300mA(Full Range),60mA(TYP Value) 19U
    SPS600VDC12000W-2-13 600V 30A 12kW 700mVp-p/80mVrms 37.5mA(Full Range),15mA(TYP Value) 13U
    SPS600VDC24000W-2-19 600V 60A 24kW 700mVp-p/80mVrms 75mA(Full Range),30mA(TYP Value) 19U
    SPS600VDC40000W-2-27 600V 100A 40kW 700mVp-p/80mVrms 125mA(Full Range),50mA(TYP Value) 27U
    SPS720VDC24000W-2-19 720V 40A 24kW 240mVp-p/45mVrms 120mA(Full Range),20mA(TYP Value) 19U
    SPS750VDC40000W-2-27 750V 60A 40kW 200mVp-p/40mVrms 120mA(Full Range),20mA(TYP Value) 27U
    SPS800VDC12000W-2-13 800V 22.5A 12kW 1600mVp-p/400mVrms 37.5mA(Full Range),15mA(TYP Value) 13U
    SPS800VDC24000W-2-19 800V 45A 24kW 1600mVp-p/400mVrms 75mA(Full Range),30mA(TYP Value) 19U
    SPS800VDC30000W-2-27 800V 60A 30kW 200mVp-p/30mVrms 500mA(Full Range),100mA(TYP Value) 27U
    SPS800VDC40000W-2-27 800V 75A 40kW 1600mVp-p/400mVrms 125mA(Full Range),50mA(TYP Value) 27U
    SPS900VDC24000W-2-19 900V 30A 24kW 240mVp-p/45mVrms 120mA(Full Range),20mA(TYP Value) 19U
    SPS1200VDC24000W-2-19 1200V 24A 24kW 450mVp-p/90mVrms 100mA(Full Range),40mA(TYP Value) 19U
    SPS1200VDC40000W-2-27 1200V 40A 40kW 400mVp-p/75mVrms 120mA(Full Range),20mA(TYP Value) 27U
