EL Series Programmable DC Electronic Load

High-density Programmable DC Electronic Load

EL Series Programmable DC Electronic Load
  • EL Series Programmable DC Electronic Load
  • EL Series Programmable DC Electronic Load
  • EL Series Programmable DC Electronic Load
  • EL Series Programmable DC Electronic Load
  • EL Series Programmable DC Electronic Load
    • Voltage: 200V/600V/1200V
    • Power: 600W-73.5kW
    • Size: 2U, 3U, 4U, 7U, 10U, 13U, 30U, 36U, 42U
    • Interface: LAN, USB, RS-232 and RS-485, optional GPIB and CAN
    • Specifications
    • Application Case
    • Related Download
    • Product Video
    Request a quote
    Description

    EL series programmable DC electronic loads feature wide current and voltage range; voltage ranges 200V/600V/1200V (for different models), single-unit power up to 27.9kW. Multi-unit connection is supported, via master/slave parallel connection, power can be up to 558kW. High power density, up to 8.1kW for 4U size. Complete protections are equipped.

    Features
    • Flip front panel and color touch screen, granting accurate display and convenient operation;
    • 4 basic working modes: CV/CC/CR/CP; 3 complex working modes: CV+CC/CV+CR/CR+CC;
    • Adjustable current slew rate and CV loop speed;
    • High-precision voltage and current measurement;
    • Automatic OCP/OPP testing;
    • Up to 50kHz CC/CR dynamic mode;
    • Up to 500kHz voltage and current sampling rate;
    • Timing function & battery discharge testing function;
    • Load short-circuit simulation function;
    • Auto mode, one-key operation for complex testing;
    • Dynamic frequency sweep function, to simulate different loads under different situations;
    • External analog control interface;
    • V-monitor/I-monitor functions;
    • Complete protections, including OVP, OCP, OPP, OTP, reverse-alarm, etc.
    • Parallel connection with master/slave mode, up to 20 units can be parallel connected at maximum;
    • USB interface in standard configuration, supporting data import/export;
    • Smart fan control system, which is quiet and eco-friendly;
    • Multiple versions for needs of different customers.
    Applications
    • Industrial motor;
    • Server power source;
    • UPS High voltage UPS;
    • DC charging pole;
    • Electronic parts;
    • Car charger;
    • Battery pack.
    Functions

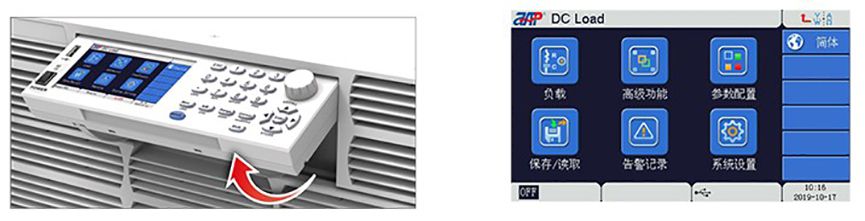

    • Flip Front Panel & Color Touch Screen
      EL series programmable DC electronic loads equip flip front panel and large color touch screen (except some models) with graphic user interface, offering convenient operation, real-time and accurate display.
      EL Series Programmable DC Electronic Load
    • 7 Working Modes
      4 basic working modes: CV/CC/CR/CP and 3 complex working modes: CV+CC/CV+CR/CR+CC, satisfying requirements of various tests.

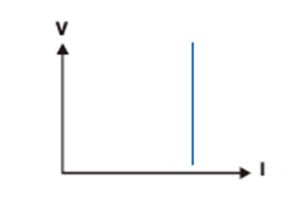

      EL Series Programmable DC Electronic LoadCC (Constant Current) Mode:
      1. Load regulation test;
      2. Battery charge/discharge time test & lifespan test;
      3. Fuel cell test;
      4. DC motor load current test;

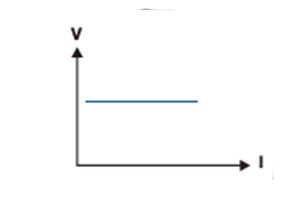

      EL Series Programmable DC Electronic LoadCV (Constant Voltage) Mode:
      1. Charing pole test;
      2. Foldback current limit test;
      3. Fuel cell test;
      4. Current source test.

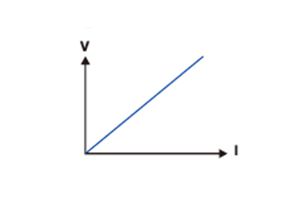

      EL Series Programmable DC Electronic LoadCR (Constant Resistance) Mode:
      1. Telecom power system soft start test;
      2. LED driver test;
      3. Vehicle climate control system on-load condition simulation.

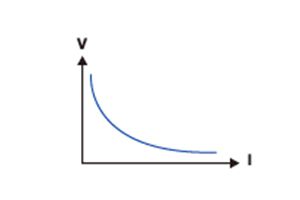

      EL Series Programmable DC Electronic LoadCP (Constant Power) Mode:
      1. Constant-power supply test;
      2. Battery capacity & lifespan tests.
      Complex Modes:

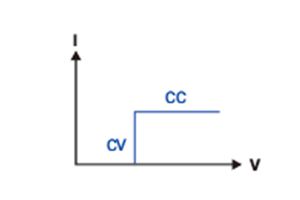

      EL Series Programmable DC Electronic LoadCV+CC Mode: Load simulation for battery, charging pole, car charger, etc.

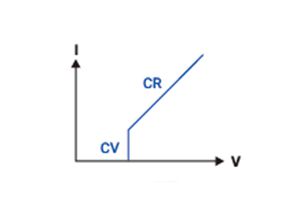

      EL Series Programmable DC Electronic LoadCV+CR Mode: LED characteristic test.

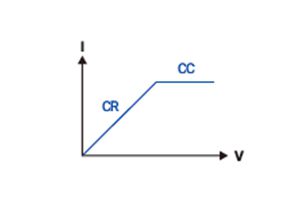

      EL Series Programmable DC Electronic LoadCR+CC Mode: Power source start-up test.

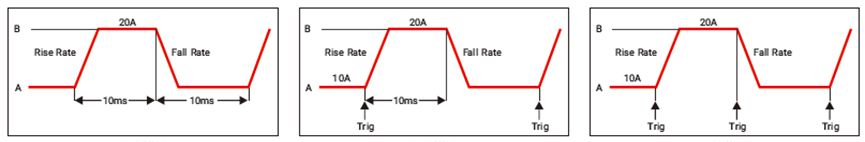

    • Dynamic Load Modes, Switching Frequency up to 50kHz
      High-frequency switching between different values under the same operating mode. Dynamic CC, CV, CR, CP modes are supported, up to 50kHz switch frequency for CC/CR dynamic modes. Dynamic load function is suitable for power supply transient testing, battery protection testing, battery pulse charging, etc. 3 dynamic load modes are offered: continuous, pulse and toggle.
      EL Series Programmable DC Electronic Load

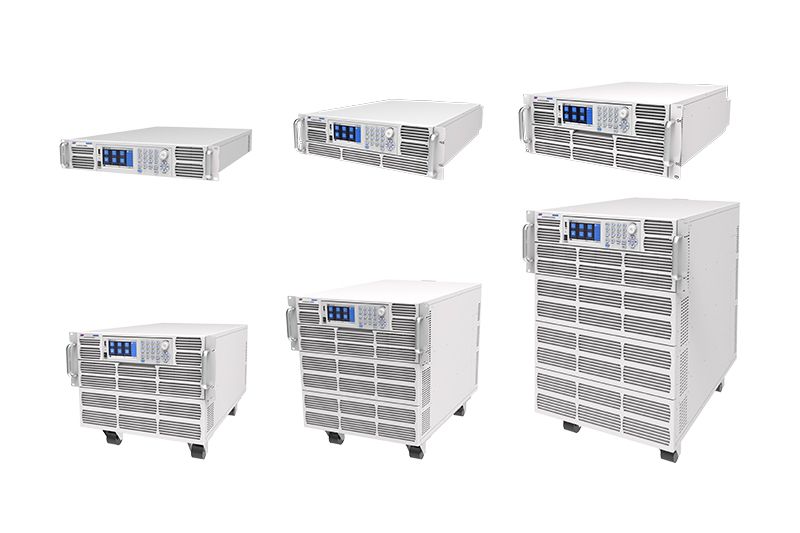

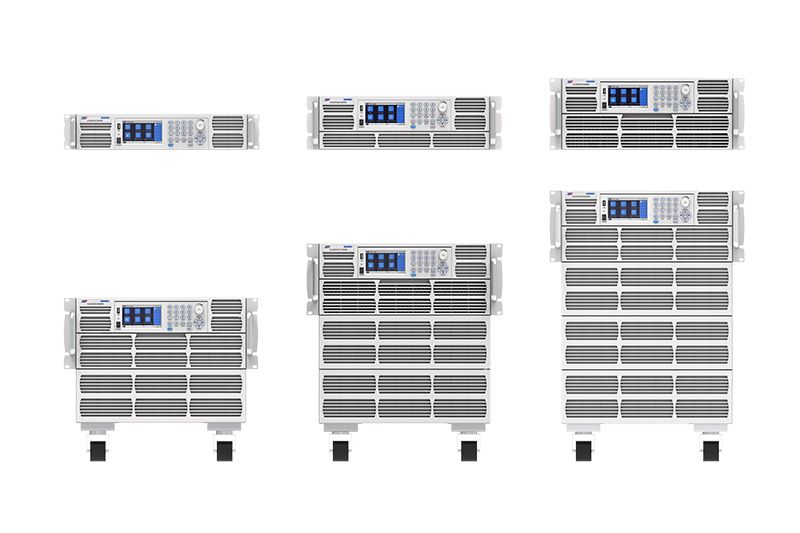

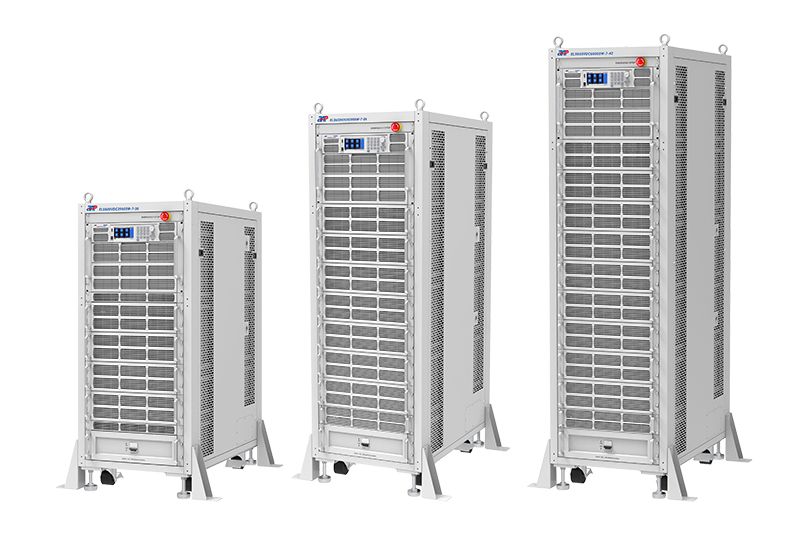

    • Different Versions for Different Needs
    Specifications
    Model Voltage Current Power Voltage Resolution Current Resolution Voltage Accuracy Current Accuracy Size
    EL40VDC3400W 40V 620A 3400W 0.1mV 0.5mA 0.015%+0.015%F.S. 0.1%+0.05%F.S. 3U
    EL40VDC4400W 40V 800A 4400W 0.1mV 0.5mA 0.015%+0.015%F.S. 0.1%+0.05%F.S. 3U
    EL40VDC5600W 40V 1020A 5600W 0.1mV 1mA 0.015%+0.015%F.S. 0.1%+0.05%F.S. 3U
    EL40VDC6600W 40V 1200A 6600W 0.1mV 1mA 0.015%+0.015%F.S. 0.1%+0.05%F.S. 4U
    EL200VDC600W 200V 60A 600W 0.1mV 0.1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 2U
    EL200VDC1200W 200V 130A 1200W 0.1mV 0.1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 2U
    EL200VDC1800W 200V 190A 1800W 0.1mV 0.1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 2U
    EL200VDC2400W 200V 260A 2400W 0.1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 2U
    EL200VDC3000W 200V 320A 3000W 0.1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 2U
    EL200VDC3400W 200V 370A 3400W 0.1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 3U
    EL200VDC4400W 200V 480A 4400W 0.1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 3U
    EL200VDC5600W 200V 610A 5600W 0.1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 3U
    EL200VDC6600W 200V 720A 6600W 0.1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 4U
    EL200VDC8100W 200V 720A 8100W 0.1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 4U
    EL200VDC8800W 200V 960A 8800W 0.1mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL200VDC10300W 200V 960A 10300W 0.1mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL200VDC11000W 200V 1200A 11000W 0.1mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL200VDC12500W 200V 1200A 12500W 0.1mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL200VDC13200W 200V 1440A 13200W 0.1mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL200VDC14700W 200V 1440A 14700W 0.1mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL200VDC15400W 200V 1680A 15400W 0.1mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL200VDC16900W 200V 1680A 16900W 0.1mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL200VDC17600W 200V 1920A 17600W 0.1mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL200VDC19100W 200V 1920A 19100W 0.1mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL200VDC19800W 200V 2160A 19800W 0.1mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL200VDC21300W 200V 2160A 21300W 0.1mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL200VDC22000W 200V 2400A 22000W 0.1mV 4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL200VDC23500W 200V 2400A 23500W 0.1mV 4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL200VDC24200W 200V 2640A 24200W 0.1mV 4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL200VDC25700W 200V 2640A 25700W 0.1mV 4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL200VDC26400W 200V 2880A 26400W 0.1mV 4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL200VDC27900W 200V 2880A 27900W 0.1mV 4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL600VDC600W 600V 40A 600W 0.5mV 0.1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 2U
    EL600VDC1200W 600V 90A 1200W 0.5mV 0.1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 2U
    EL600VDC1800W 600V 130A 1800W 0.5mV 0.1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 2U
    EL600VDC2400W 600V 180A 2400W 0.5mV 0.2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 2U
    EL600VDC3000W 600V 220A 3000W 0.5mV 0.2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 2U
    EL600VDC3400W 600V 250A 3400W 0.5mV 0.4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 3U
    EL600VDC4400W 600V 320A 4400W 0.5mV 0.4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 3U
    EL600VDC5600W 600V 410A 5600W 0.5mV 0.4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 3U
    EL600VDC6600W 600V 480A 6600W 0.5mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 4U
    EL600VDC8100W 600V 600A 8100W 0.5mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 4U
    EL600VDC8800W 600V 640A 8800W 0.5mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL600VDC10300W 600V 760A 10300W 0.5mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL600VDC11000W 600V 800A 11000W 0.5mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL600VDC12500W 600V 920A 12500W 0.5mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL600VDC13200W 600V 960A 13200W 0.5mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL600VDC14700W 600V 1080A 14700W 0.5mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL600VDC15400W 600V 1120A 15400W 0.5mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL600VDC16900W 600V 1240A 16900W 0.5mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL600VDC17600W 600V 1280A 17600W 0.5mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL600VDC19100W 600V 1400A 19100W 0.5mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL600VDC19800W 600V 1440A 19800W 0.5mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL600VDC21300W 600V 1560A 21300W 0.5mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL600VDC22000W 600V 1600A 22000W 0.5mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL600VDC23500W 600V 1720A 23500W 0.5mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL600VDC24200W 600V 1760A 24200W 0.5mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL600VDC25700W 600V 1880A 25700W 0.5mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL600VDC26400W 600V 1920A 26400W 0.5mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL600VDC27900W 600V 2040A 27900W 0.5mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL1200VDC1200W 1200V 45A 1200W 1mV 0.1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 2U
    EL1200VDC2400W 1200V 90A 2400W 1mV 0.1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 2U
    EL1200VDC3400W 1200V 125A 3400W 1mV 0.2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 3U
    EL1200VDC4400W 1200V 160A 4400W 1mV 0.2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 3U
    EL1200VDC5600W 1200V 205A 5600W 1mV 0.2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 3U
    EL1200VDC6600W 1200V 240A 6600W 1mV 0.2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 4U
    EL1200VDC8100W 1200V 300A 8100W 1mV 0.2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 4U
    EL1200VDC8800W 1200V 320A 8800W 1mV 0.4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL1200VDC10300W 1200V 380A 10300W 1mV 0.4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL1200VDC11000W 1200V 400A 11000W 1mV 0.4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL1200VDC12500W 1200V 460A 12500W 1mV 0.4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL1200VDC13200W 1200V 480A 13200W 1mV 0.4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL1200VDC14700W 1200V 540A 14700W 1mV 0.4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 7U
    EL1200VDC15400W 1200V 560A 15400W 1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL1200VDC16900W 1200V 620A 16900W 1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL1200VDC17600W 1200V 640A 17600W 1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL1200VDC19100W 1200V 700A 19100W 1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL1200VDC19800W 1200V 720A 19800W 1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL1200VDC21300W 1200V 780A 21300W 1mV 0.5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 10U
    EL1200VDC22000W 1200V 800A 22000W 1mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL1200VDC23500W 1200V 860A 23500W 1mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL1200VDC24200W 1200V 880A 24200W 1mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL1200VDC25700W 1200V 940A 25700W 1mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL1200VDC26400W 1200V 960A 26400W 1mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U
    EL1200VDC27900W 1200V 1020A 27900W 1mV 1mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 13U

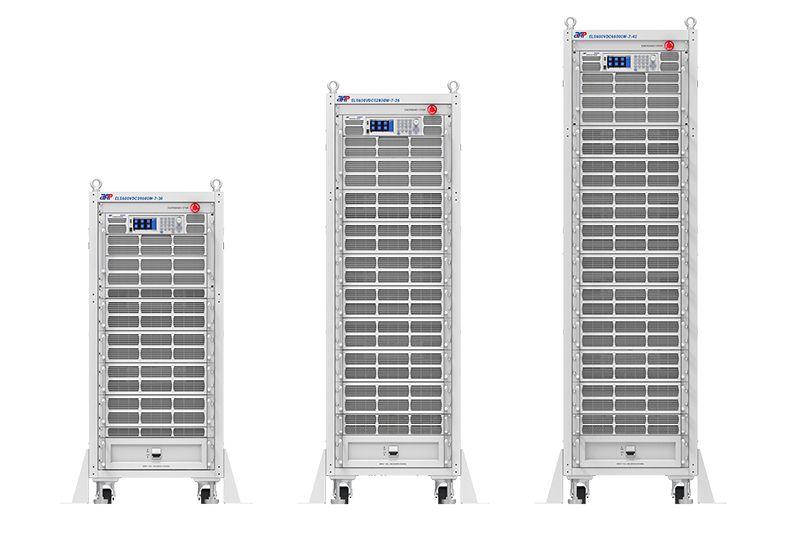

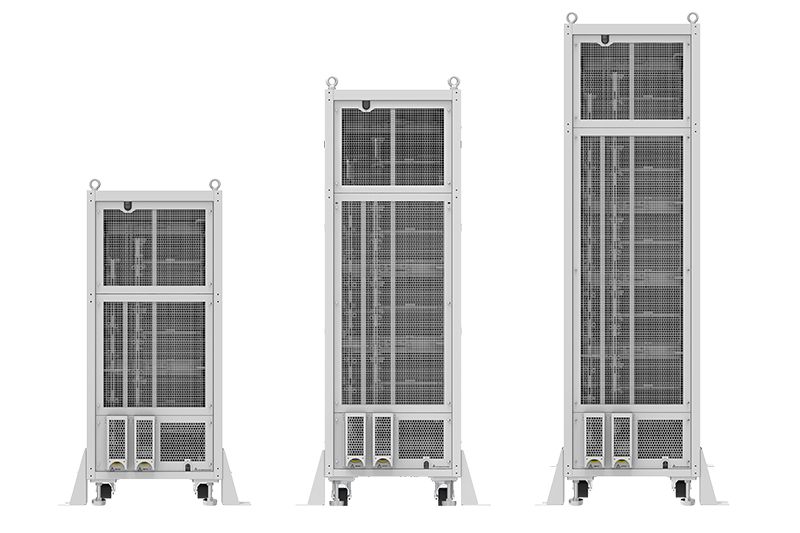

    Model Voltage Current Power Voltage Resolution Current Resolution Voltage Accuracy Current Accuracy Size
    ELS200VDC39600W-7-30 200V 3000A 39.6kW 0.1mV 3mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 30U
    ELS200VDC44100W-7-30 200V 3000A 44.1kW 0.1mV 3mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 30U
    ELS200VDC52800W-7-36 200V 3000A 52.8kW 0.1mV 4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 36U
    ELS200VDC58800W-7-36 200V 3000A 58.8kW 0.1mV 4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 36U
    ELS200VDC66000W-7-42 200V 3000A 66kW 0.1mV 5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 42U
    ELS200VDC73500W-7-42 200V 3000A 73.5kW 0.1mV 5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 42U
    ELS600VDC39600W-7-30 600V 2880A 39.6kW 0.5mV 3mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 30U
    ELS600VDC44100W-7-30 600V 3000A 44.1kW 0.5mV 3mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 30U
    ELS600VDC52800W-7-36 600V 3000A 52.8kW 0.5mV 4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 36U
    ELS600VDC58800W-7-36 600V 3000A 58.8kW 0.5mV 4mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 36U
    ELS600VDC66000W-7-42 600V 3000A 66kW 0.5mV 5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 42U
    ELS600VDC73500W-7-42 600V 3000A 73.5kW 0.5mV 5mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 42U
    ELS1200VDC39600W-7-30 1200V 1440A 39.6kW 1mV 1.2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 30U
    ELS1200VDC44100W-7-30 1200V 1620A 44.1kW 1mV 1.2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 30U
    ELS1200VDC52800W-7-36 1200V 1920A 52.8kW 1mV 1.6mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 36U
    ELS1200VDC58800W-7-36 1200V 2160A 58.8kW 1mV 1.6mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 36U
    ELS1200VDC66000W-7-42 1200V 2400A 66kW 1mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 42U
    ELS1200VDC73500W-7-42 1200V 2700A 73.5kW 1mV 2mA 0.015%+0.015%F.S. 0.04%+0.04%F.S. 42U

    Show All

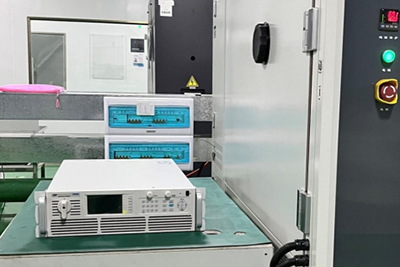

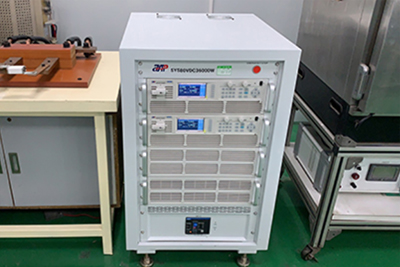

    Application Case
    Related downloads
    Videos
    SP-300 Series Single Phase Programmable AC Power Source

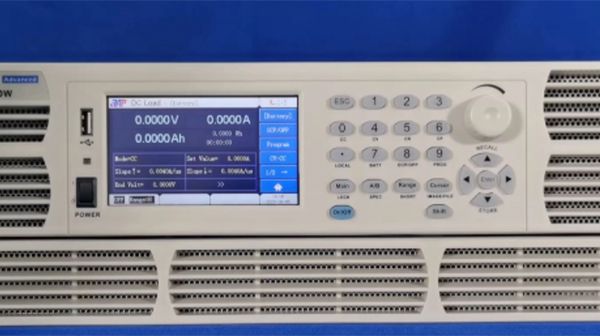

    Battery Discharge Test Function - EL Programmable DC Electronic Load
    SP-300 Series Single Phase Programmable AC Power Source

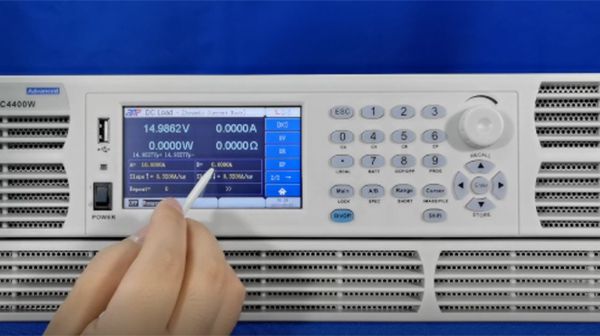

    Dynamic Test Function - EL DC Electronic Load
    SP-300 Series Single Phase Programmable AC Power Source

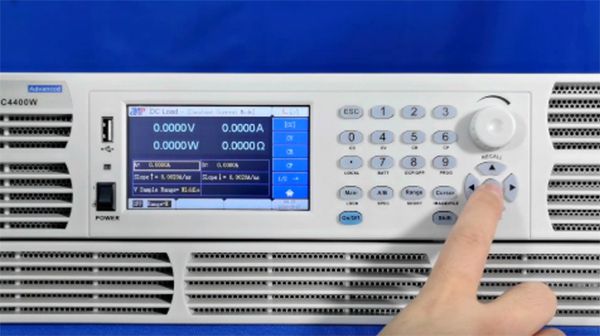

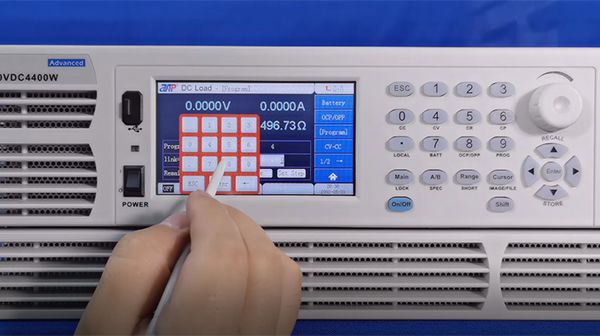

    Front Panel Operation Instructions - EL DC Electronic Load
