Fuse Testing Solution - DC Power Supply
Background

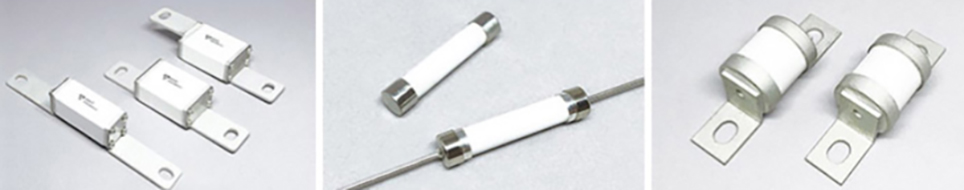

When there is a fault in electrical circuit, the current will rise continuously, and if there is no protector, the burnout circuit or even fire may occur. Important in circuit protection, fuses need to be melted properly to disconnect the current. Therefore, the selection of proper power supply for fuse testing becomes quite important, which ensures not only improved efficiency, but also high testing accuracy.

Fuse Testing Solution
Advantages of Applying APM DC Power Supply for Fuse Testing
  • Short-circuit mode
  • Counting mode
  • CV/CC first
  • Fast-rising current
  • Master-slave mode
  • High stability

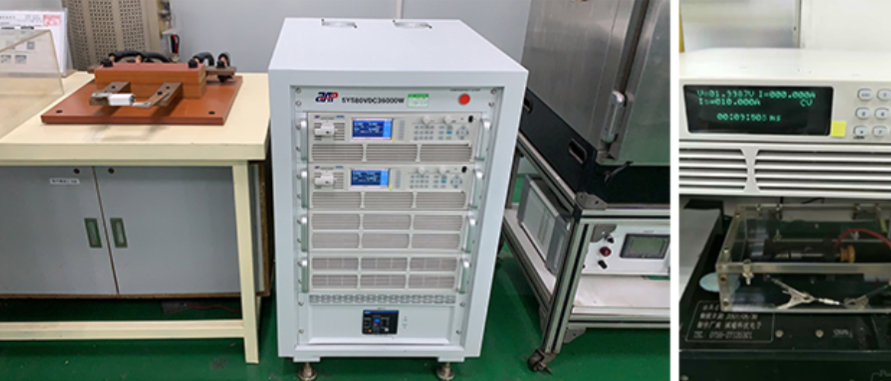

Fuse Testing Solution

Testing platform is easy to build. The testing requires zero auxiliary equipment as long as the loading and fuse fixture are connected. If you have any questions during the testing, please feel free to call APM Technologies. Our professional team will provide you with effective solutions in time.

PDF Download
APM Technologies is a professional power electric manufacturer and testing solution provider, offering programmable DC/AC power supplies and DC electronic loads with high performance and various functions granting reliability and convenience in tests. Our products can be applied for various industrial applications, such as electric vehicle tests, LED light tests, battery tests, etc. We maintain great efforts on R&D and production. With a professional and innovative R&D team as well as cooperation with experts worldwide, we keep our technologies cutting-edge; with advanced equipment and scientific management, we keep our products top-qualified. We spend efforts in services as much as that in products, feel free to contact us if you are in need, APM Technologies is your reliable choice.
